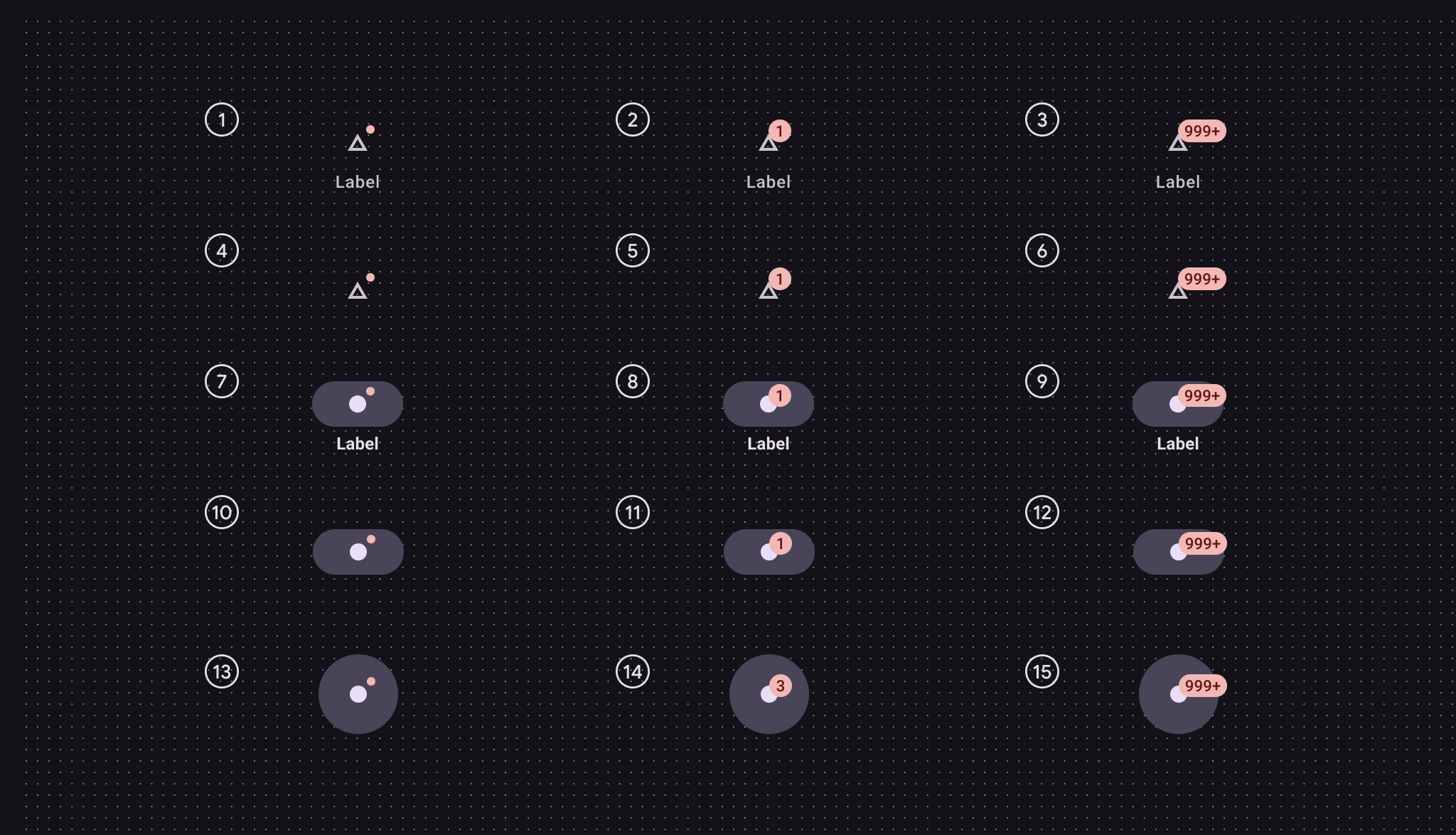

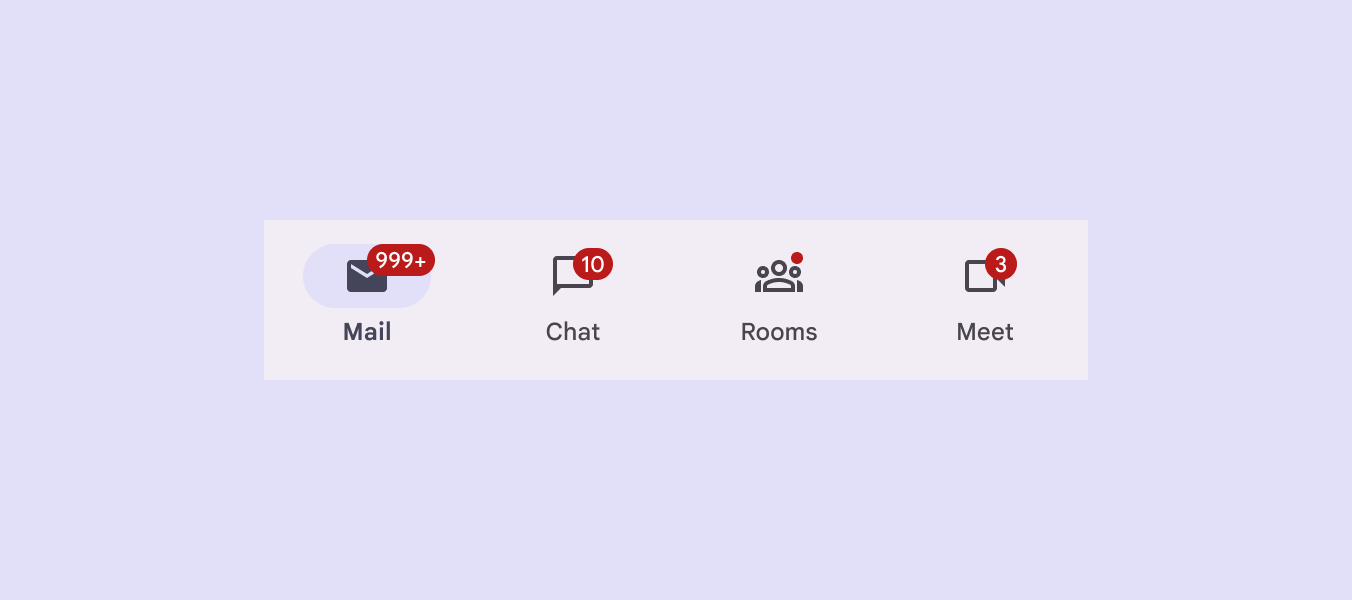

Badges 徽章


| Attribute 屬性 | Value 值 |

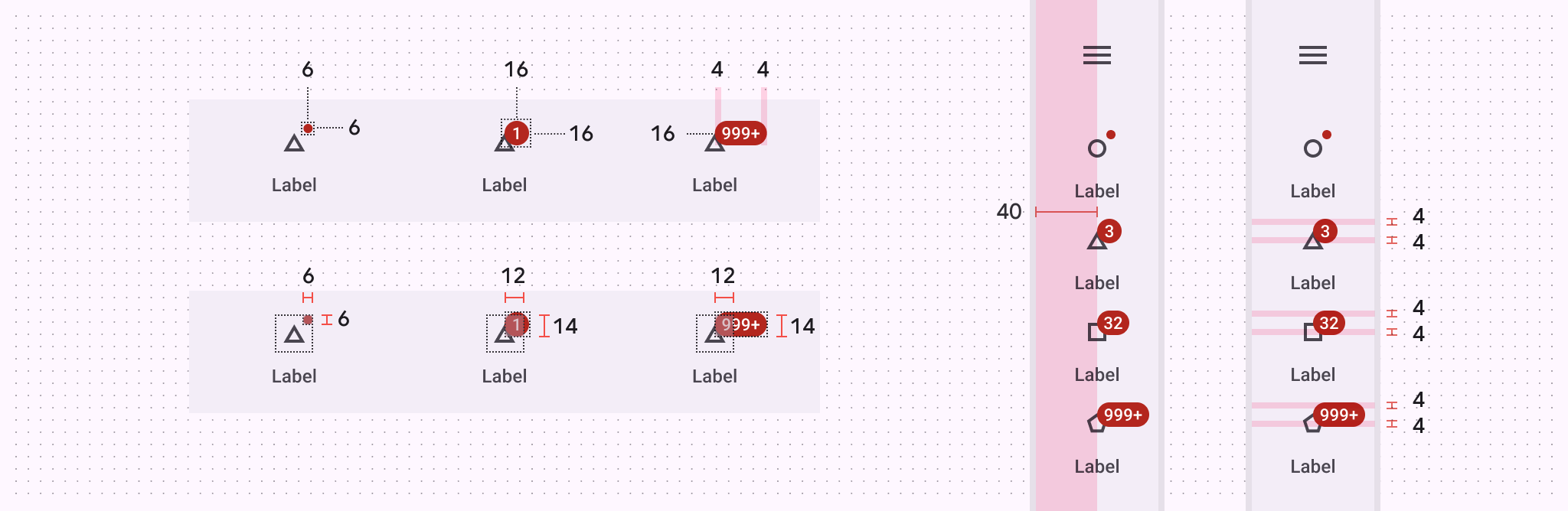

| Small badge shape 小徽章形狀 | 3dp corner radius 圓角半徑 |
| Small badge size (HxW) 小徽章尺寸(高 x 寬) | 6dp |
| Large badge shape 大徽章形狀 | 8dp corner radius 圓角半徑 |
| Large badge one digit size (HxW)大型徽章一位數字尺寸(高×寬) | 16dp |
| Large badge max character count size (HxW)大型徽章最大字元數尺寸(高×寬) | 16dp x 34dp |
| Small badge: distance from top trailing icon corner to bottom leading badge corner (HxW)小型徽章:從頂部後置圖示角到徽章底部前置角的距離(高×寬) | 6dp x 6dp |
| Large badge: distance from top trailing icon corner to bottom leading badge corner (HxW)大徽章:從頂部後置圖示角到底部前置徽章角的距離(高 x 寬) | 14dp x 12dp |
| Large badge padding between badge and text container大徽章與文字容器之間的大徽章內邊距 | 4dp |
Configuration 配置
